| Place of Origin: | China |
| Brand Name: | SHINE OR OEM |
| Certification: | CE, RoHS, SGS, LVD |
| Model Number: | SN-H60W |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negiotation |
| Packaging Details: | 10 pcs per carton and then on pallet. |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 10000 pcs per month |
| Features: | Corrosion Resistant, Flexible, Portable | Size: | 725*535*3mm |
|---|---|---|---|
| Weight: | 0.7KGS | Color: | White Or Black |
| Junction Box: | IP67 With Diodes | Connectors: | 90cm With MC4 Connectors |
| Application: | Boat/RV/Vehicle/Home | Warranty: | 5 Years |
| High Light: | flexible pv cells,thin film pv solar panels |
||

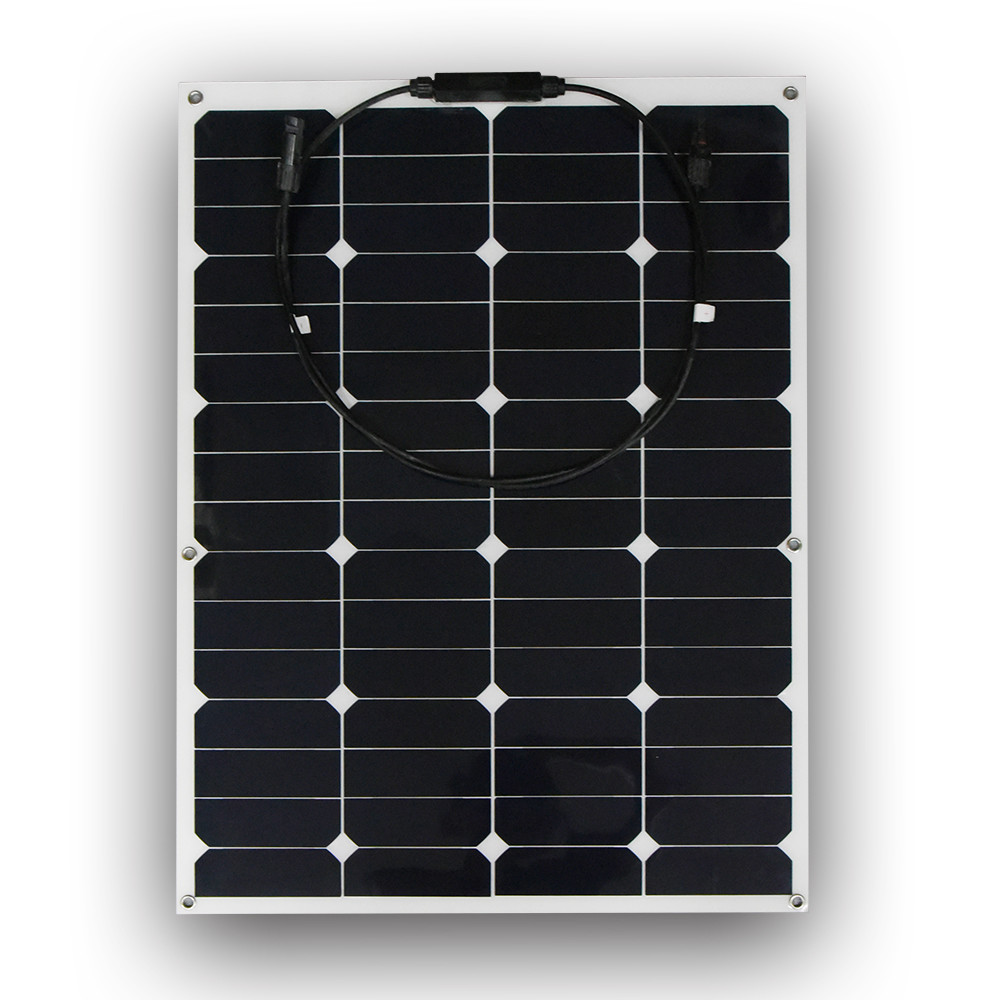

Specification Flexible solar panel :
1. Back contact solar panels for off-grid and on-grid systems
2. Sunpower cells from USA sunpower corporation
3. 19%-23% high efficiency.
4. Flexible and light weight
Features Flexible solar panel :
The high efficiency solar PV module adopts the world’s highest efficiency cell with efficiency up to 23%, and efficiency of the module is 25-30% higher than the traditional ones, this cell’s positive pole and the negative pole are on the same side, the cell’s front side can absorb maximum sunlight, so that it can get the maximum power.
| Sunpower Semi-Flexible Solar Panel | |||||||
| MODEL | PM/W | VOC/V | ISC/A | VMP/V | IMP/A | N/W(kg) | DIMENSION (mm) |
| SN-H18W | 18.00 | 23.70 | 1.03 | 19.40 | 0.93 | 0.32 | 434*277*3 |
| SN-H20W | 20.00 | 25.00 | 1.05 | 20.80 | 0.96 | 0.36 | 455*277*3 |
| SN-H25W | 25.00 | 21.60 | 1.50 | 18.00 | 1.40 | 0.45 | 560*277*3 |
| SN-H30W | 30.00 | 21.20 | 1.83 | 17.60 | 1.70 | 0.54 | 535*378*3 |
| SN-H50W | 50.00 | 21.20 | 3.05 | 17.60 | 2.84 | 0.90 | 545*535*3 |
| SN-H60W | 60.00 | 21.00 | 3.84 | 17.50 | 3.43 | 1.08 | 725*535*3 |
| SN-H90W | 90.00 | 18.50 | 6.30 | 15.20 | 5.90 | 1.60 | 920*540*3 |
| SN-H100W | 100.00 | 21.60 | 5.97 | 17.80 | 5.62 | 1.80 | 1050*540*3 |
| SN-H110W | 110.00 | 23.70 | 5.91 | 19.80 | 5.56 | 1.98 | 1175*540*3 |
| SN-H120W | 120.00 | 26.40 | 5.87 | 22.00 | 5.45 | 2.16 | 1305*540*3 |
| SN-H135W | 135.00 | 29.50 | 5.82 | 24.90 | 5.45 | 2.43 | 1435*540*3 |
| SN-H150W | 150.00 | 32.00 | 5.90 | 27.40 | 5.50 | 2.70 | 1300*660*3 |
| SN-H180W | 180.00 | 40.00 | 6.00 | 33.00 | 5.45 | 3.24 | 1300*800*3 |
| SN-H200W | 200.00 | 42.00 | 6.30 | 35.00 | 5.70 | 3.60 | 1435*800*3 |
| SN-H220W | 220.00 | 48.30 | 5.90 | 39.80 | 5.45 | 3.96 | 1560*800*3 |
| SN-H250W | 250.00 | 54.00 | 6.10 | 45.00 | 5.60 | 4.50 | 1810*800*3 |
| SN-H300W | 300.00 | 66.00 | 6.50 | 55.00 | 5.45 | 5.40 | 1810*920*3 |
