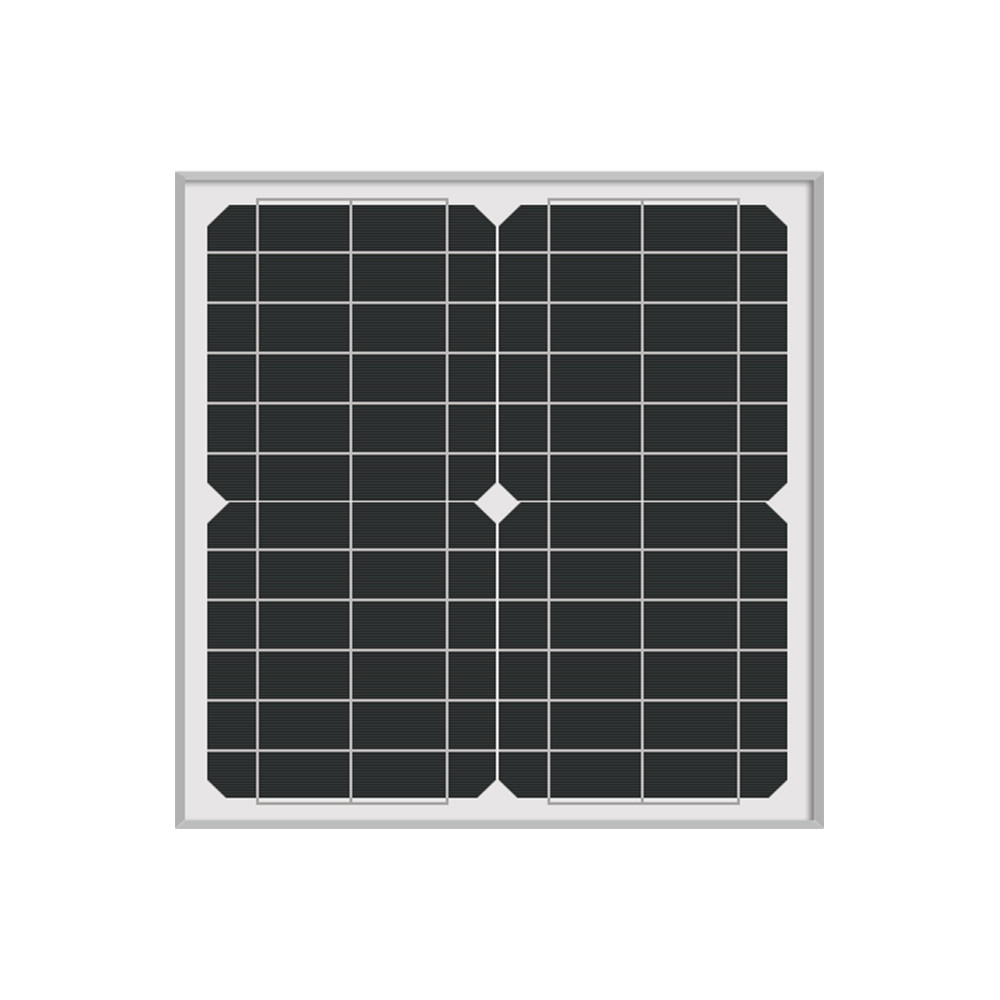

Grade A 20W 12V Solar Panel , Small Photovoltaic Solar Panels OEM Available

Grade A 20W 12V Solar Panel , Small Photovoltaic Solar Panels OEM Available

    • Grade A 20W 12V Solar Panel , Small Photovoltaic Solar Panels OEM Available
    • Grade A 20W 12V Solar Panel , Small Photovoltaic Solar Panels OEM Available
  • Grade A 20W 12V Solar Panel , Small Photovoltaic Solar Panels OEM Available

    Product Details:

    Place of Origin: CHINA
    Brand Name: SHINE OR OEM
    Certification: CE, LVD, TUV, IEC, ROSH, SGS
    Model Number: SN-M90

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: single box or 25 pieces per pallet
    Delivery Time: 15 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 20000 pcs per month
    Contact Now
    Detailed Product Description
    Max Power: 90Watt Voltage: 18V Vmp
    Current: 5.00A Efficiency: 13.92%
    SIze: 1195*541*30mm Junction Box: MC4 Connector
    High Light:

    12v pv solar panels

    ,

    12 volt portable solar panels

    Commercial Grade A 20watt 12V Solar Panel small photovoltaic solar panels

    Product Description

    Characteristics SN-M005 SN-M010 SN-M020 SN-M030 SN-M040
    Maximum Power(Pmax) 5Wp 10Wp 20Wp 30Wp 40Wp
    Optimum Operating Voltage/Vmp 18.0V 18.0V 18.0V 18.0V 18.0V
    Optimum Operating Current/Imp 0.27A 0.56A 1.11A 1.67A 2.22A
    Open Circuit Voltage /Voc 21.6V 21.6V 21.6V 21.6V 21.6V
    Short Circuit Current /Isc 0.3A 0.66A 1.21A 1.87A 2.42A
    Module Efficiency 10.32% 11.37% 12.33% 13.70% 14.80%
    Weight 1Kg 1.7Kg 2.3Kg 2.8Kg 3.2Kg
    Numbers of cells 36(2*18) 36(2*18) 36(2*18) 36(2*18) 36(3*12)
    Cell dimension(mm) 78*10.4 156*10.4 156*22.3 156*31.2 156*39
    Dimensions(mm) 255*190*18 345*255*18 470*345*25 635*345*25 530*510*25
    Standard test condition

    Irradiance 1000W/m²,Module temperature 25℃, AM=1.5

    Mechanical Characteristics
    Power Tolerance ±3 %
    Maximum Series Fuse Rating 15A
    Maximum System Voltage 1000V DC
    Operating Module Temperature -40°C to +80°C
    Frame Material Clear Anodized aluminum Frame
    Thickness of glass 3.2mm tempered glass
    Frame Anodized aluminum alloy
    Laminating material EVA
    Backsheet material TPT
    Junction box Ip65



    Temperature Characteristics
    Norminal Operating Cell Temperature(NOCT) 45±2℃
    Temperature Coefficient of Pmax -0.45%/2℃
    Temperature Coefficient of Voc -0.34%/2℃
    Temperature Coefficient of Isc -0.050%/2℃





    Features

    Aesthetic appearance with excellent efficiency based on innovative

    photovoltaic technologies

    Strong frame, passing mechanical load test of 5400Pa, instead of the normal

    2400Pa,to withstand heavier snow load and higher wind-pressure

    Unique frame design, high mechanical strength, and easy Installation.

    Advanced encapsulation material with multiplayer sheet lamination to provide efficient protection from the severest environmental conditions


    Specification

    1) 25 years warranty insured by chubb
    2) CE/ROHS/TUV
    3) High efficiency, good quality
    4) Quick delivery
    5) OEM available





    Warranties

    10 years limited product warranty

    15 years at 90% of the minimal rated power output

    25 years at 80% of the minimal rated power output
