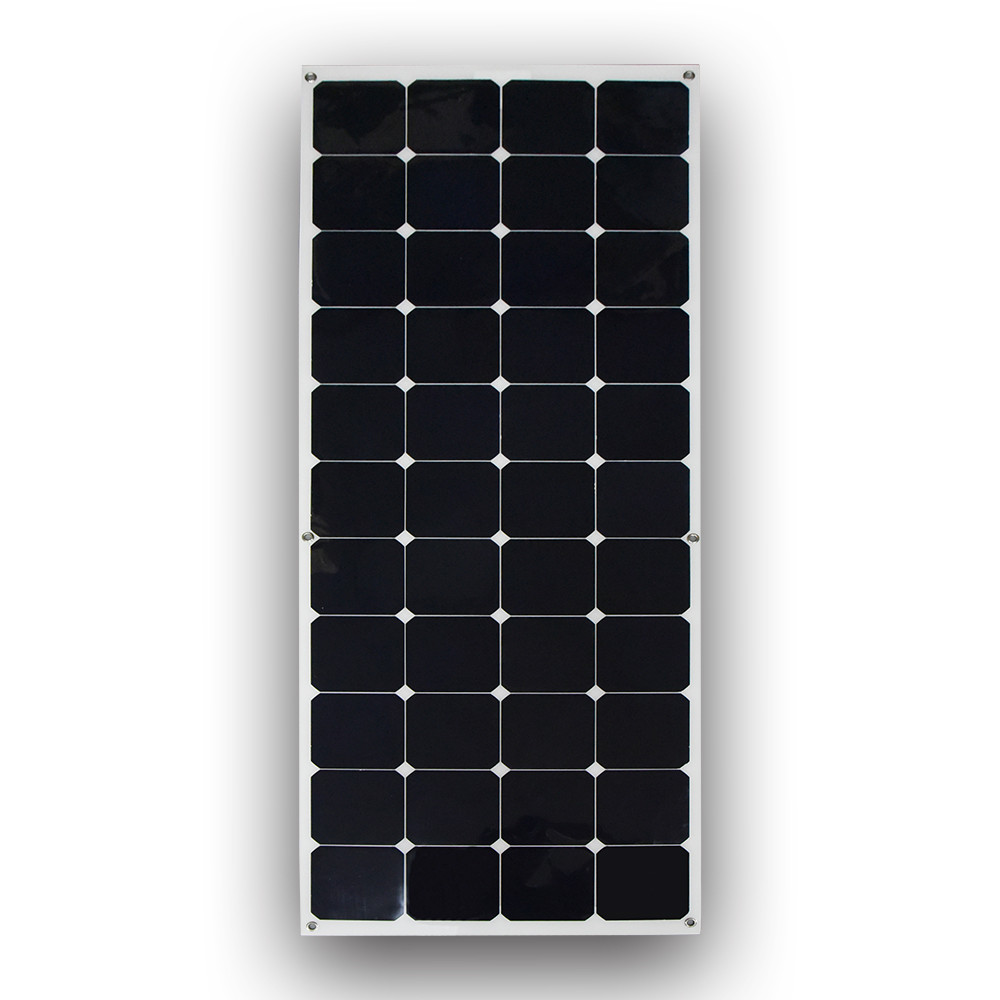

1.5KGS 120W Flexible PV Solar Panels For Grid - Connected Power Generation System

1.5KGS 120W Flexible PV Solar Panels For Grid - Connected Power Generation System

    • 1.5KGS 120W Flexible PV Solar Panels For Grid - Connected Power Generation System
    • 1.5KGS 120W Flexible PV Solar Panels For Grid - Connected Power Generation System
  • 1.5KGS 120W Flexible PV Solar Panels For Grid - Connected Power Generation System

    Product Details:

    Place of Origin: China
    Brand Name: SHINE OR OEM
    Certification: CE, RoHS, SGS, LVD
    Model Number: SN-H50W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negiotation
    Packaging Details: 10 pcs per carton and then on pallet.
    Delivery Time: 5-8 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union
    Supply Ability: 10000 pcs per month
    Contact Now
    Detailed Product Description
    Features: Corrosion Resistant, Flexible, Portable Size: 1175*540mm
    Weight: 1.5KGS Color: White Or Black
    Junction Box: IP65 With Diodes Connectors: 90cm With MC4 Connectors
    Application: Boat/RV/Vehicle/Home Warranty: 5 Years

    120W Flexible PV Solar Panels for boat, RV, caravan,roof with high quality



    Specification Flexible solar panel :

    1. Back contact solar panels for off-grid and on-grid systems

    2. Sunpower cells from USA sunpower corporation

    3. 19%-23% high efficiency.

    4. Flexible and light weight



    Features Flexible solar panel :

    The high efficiency solar PV module adopts the world’s highest efficiency cell with efficiency up to 23%, and efficiency of the module is 25-30% higher than the traditional ones, this cell’s positive pole and the negative pole are on the same side, the cell’s front side can absorb maximum sunlight, so that it can get the maximum power.


    Product Description
    Sunpower Semi-Flexible Solar Panel
    MODEL PM/W VOC/V ISC/A VMP/V IMP/A N/W(kg) DIMENSION
    (mm)
    SN-H18W 18.00  23.70  1.03  19.40  0.93  0.32  434*277*3
    SN-H20W 20.00  25.00  1.05  20.80  0.96  0.36  455*277*3
    SN-H25W 25.00  21.60  1.50  18.00  1.40  0.45  560*277*3
    SN-H30W 30.00  21.20  1.83  17.60  1.70  0.54  535*378*3
    SN-H50W 50.00  21.20  3.05  17.60  2.84  0.90  545*535*3
    SN-H60W 60.00  21.00  3.84  17.50  3.43  1.08  725*535*3
    SN-H90W 90.00  18.50  6.30  15.20  5.90  1.60  920*540*3
    SN-H100W 100.00  21.60  5.97  17.80  5.62  1.80  1050*540*3
    SN-H110W 110.00  23.70  5.91  19.80  5.56  1.98  1175*540*3
    SN-H120W 120.00  26.40  5.87  22.00  5.45  2.16  1305*540*3
    SN-H135W 135.00  29.50  5.82  24.90  5.45  2.43  1435*540*3
    SN-H150W 150.00  32.00  5.90  27.40  5.50  2.70  1300*660*3
    SN-H180W 180.00  40.00  6.00  33.00  5.45  3.24  1300*800*3
    SN-H200W 200.00  42.00  6.30  35.00  5.70  3.60  1435*800*3
    SN-H220W 220.00  48.30  5.90  39.80  5.45  3.96  1560*800*3
    SN-H250W 250.00  54.00  6.10  45.00  5.60  4.50  1810*800*3
    SN-H300W 300.00  66.00  6.50  55.00  5.45  5.40  1810*920*3





    1.5KGS 120W Flexible PV Solar Panels For Grid - Connected Power Generation System
