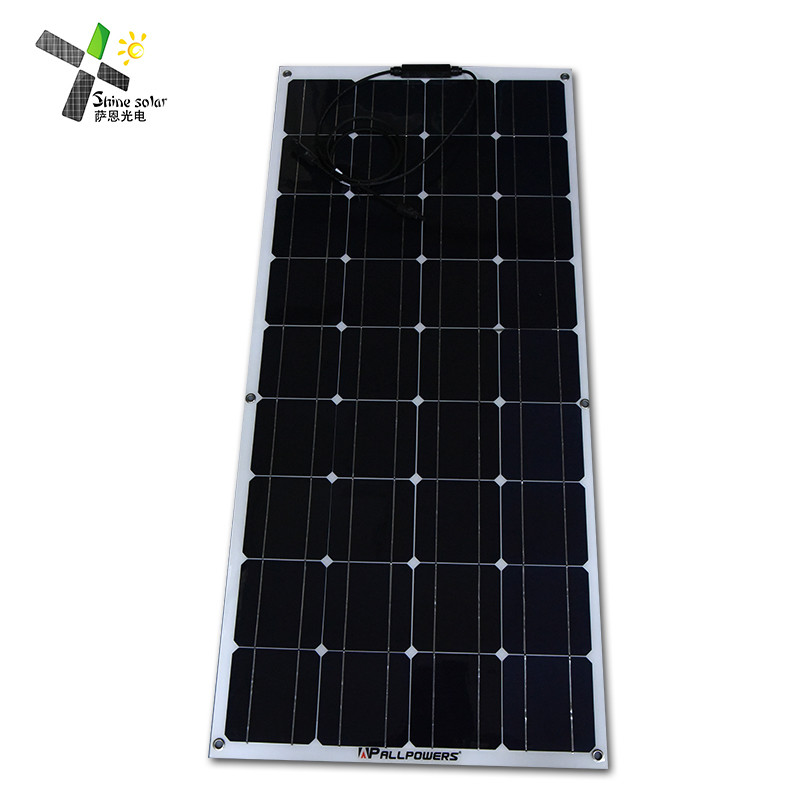

Portable 110W Mono Cell Solar Panel , Durable Semi Flexible Solar Panel

Portable 110W Mono Cell Solar Panel , Durable Semi Flexible Solar Panel

    • Portable 110W Mono Cell Solar Panel , Durable Semi Flexible Solar Panel
    • Portable 110W Mono Cell Solar Panel , Durable Semi Flexible Solar Panel
  • Portable 110W Mono Cell Solar Panel , Durable Semi Flexible Solar Panel

    Product Details:

    Place of Origin: China
    Brand Name: SHINE or OEM
    Certification: CE,RoHS, TUV, IEC, SGS, ISO
    Model Number: SN-MH110W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: single box or 5 piece per carton or 10 pcs per carton
    Delivery Time: 15 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 15000 pcs per month
    Contact Now
    Detailed Product Description
    Cells: 32pcs Monocrystalline Cells Voltage: 18V
    Junction Box: IP65 Waterproof With Diodes Cable: 90cm UV Resistance
    Color: White Or Black Efficience: 23%

    Semi Flexible Solar Panel Mono Cell Solar Panel 50w 18v portable solar panel





    Features

    1. Solar Cell High conversion efficiency 23%

    2. Positive power tolerance of 0~+3%, which means every solar panel power is higher than the rated power in the standard testing consditions.

    3. Low degradation under light exposure.

    4. Flexible, light, thickness

    5. Easy installation and portable



    Specification:

    Model Type SN-MH110W
    Peak Power(Pmax) 110W
    Maximum Power Voltage(Vmp) 19.8V
    Maximum Power Current(Imp) 5.6A
    Open Circuit Voltage(Voc) 23.7V
    Short Circuit Current(Isc) 5.9A
    Cells Efficiency() 23%
    Module Efficiency() 20%
    Maximum System Voltage(V) 1000V
    Maximum Series Fuse Rating(A) 15A
    Power Tolerance 0~+3
    Pmax Temperature Coefficients(W/) -0.450
    Voc Temperature Coefficients(V/) -0.350
    Isc Temperature Coefficients(A/) +0.040
    NOCT Nominal Operating Cell Temperature() 47±2
    Operating and Storage Temperature() -40~+85
    Standard Test Condition(STC) 1.000W/m2;AM 1.5;25+/-2
