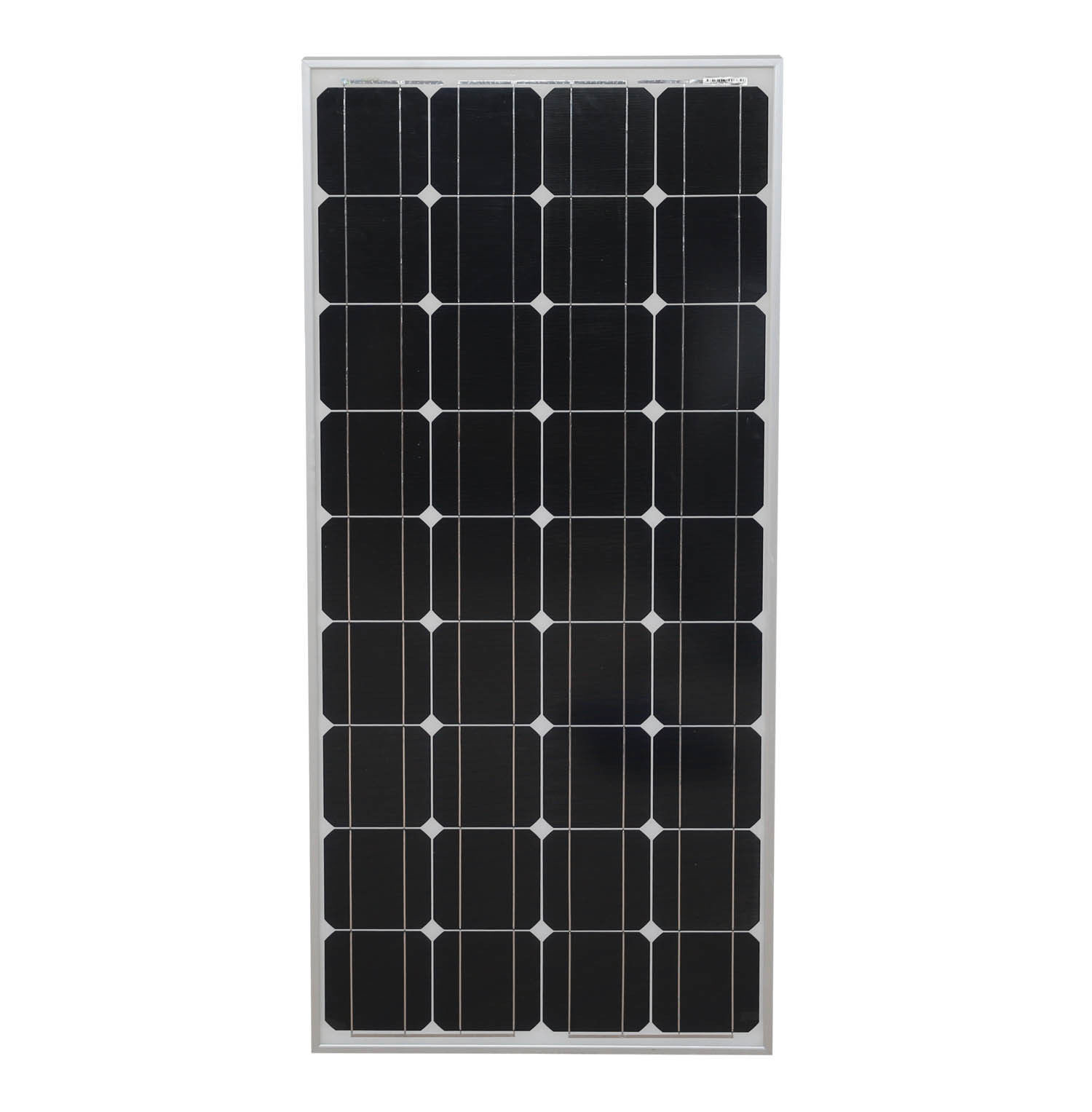

Customizable Monocrystalline Solar Panel 150W 12V With TUV Certificatied

Customizable Monocrystalline Solar Panel 150W 12V With TUV Certificatied

Customizable Monocrystalline Solar Panel 150W 12V With TUV Certificatied

Product Details:

Place of Origin: China
Brand Name: SHINE or OEM
Certification: CE,RoHS, TUV, IEC, SGS, ISO
Model Number: SN-M150

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD0.3~0.4/wp
Packaging Details: single box or 25 pcs per pallet
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15000 pcs per month
Contact Now
Detailed Product Description
Cells: 36 Pcs 156*156mm Taiwan Cells Voltage: 18V
Junction Box: IP65 Waterproof With 3 Diodes Cable: 90cm UV Resistance
Color: Sliver Or Black

fast delivery china TUV certificatied 150W 12V Monocrystalline Solar panel





160-230Watt Monocrystalline Solar Panel
Characteristics SN-M160 SN-M170 SN-M180 SN-M190 SN-M200 SN-M210 SN-M220 SN-M230
Maximum Power(Pmax) 160Wp 170Wp 180Wp 190Wp 200Wp 210Wp 220Wp 230Wp
Optimum Operating Voltage/Vmp 18.0V 36.0V 36.0V 36.0V 36.0V 27.0V 27.0V 27.0V
Optimum Operating Current/Imp 8.89A 4.72A 5.00A 5.28A 5.56A 7.78A 8.15A 8.52A
Open Circuit Voltage /Voc 21.6V 43.2V 43.2V 43.2V 43.2V 32.4V 32.4V 32.4V
Short Circuit Current /Isc 9.78A 5.32A 5.6A 5.88A 6.16A 8.38A 8.75A 9.12A
Module Efficiency 16.13% 17.14% 14.10% 14.88% 15.67% 16.10% 16.83% 17.61%
Weight 11Kg 11Kg 14Kg 14Kg 14Kg 14.5Kg 14.5Kg 14.5Kg
Numbers of cells 36(4*9) 36(4*9) 72(6*12) 72(6*12) 72(6*12) 48(8*6) 48(8*6) 48(8*6)
Cell dimension(mm) 156*156 156*156 125*125 125*125 125*125 156*156 156*156 156*156
Dimensions(mm) 1480*670*35 1580*808*35 1320*990*35
Standard test condition Irradiance 1000W/m²,Module temperature 25℃, AM=1.5



Mechanical Characteristics
Power Tolerance ±3 %
Maximum Series Fuse Rating 15A
Maximum System Voltage 1000V DC
Operating Module Temperature -40°C to +80°C
Frame Material Clear Anodized aluminum Frame
Thickness of glass 3.2mm tempered glass
Frame Anodized aluminum alloy
Laminating material EVA
Backsheet material TPT
Junction box Ip65
