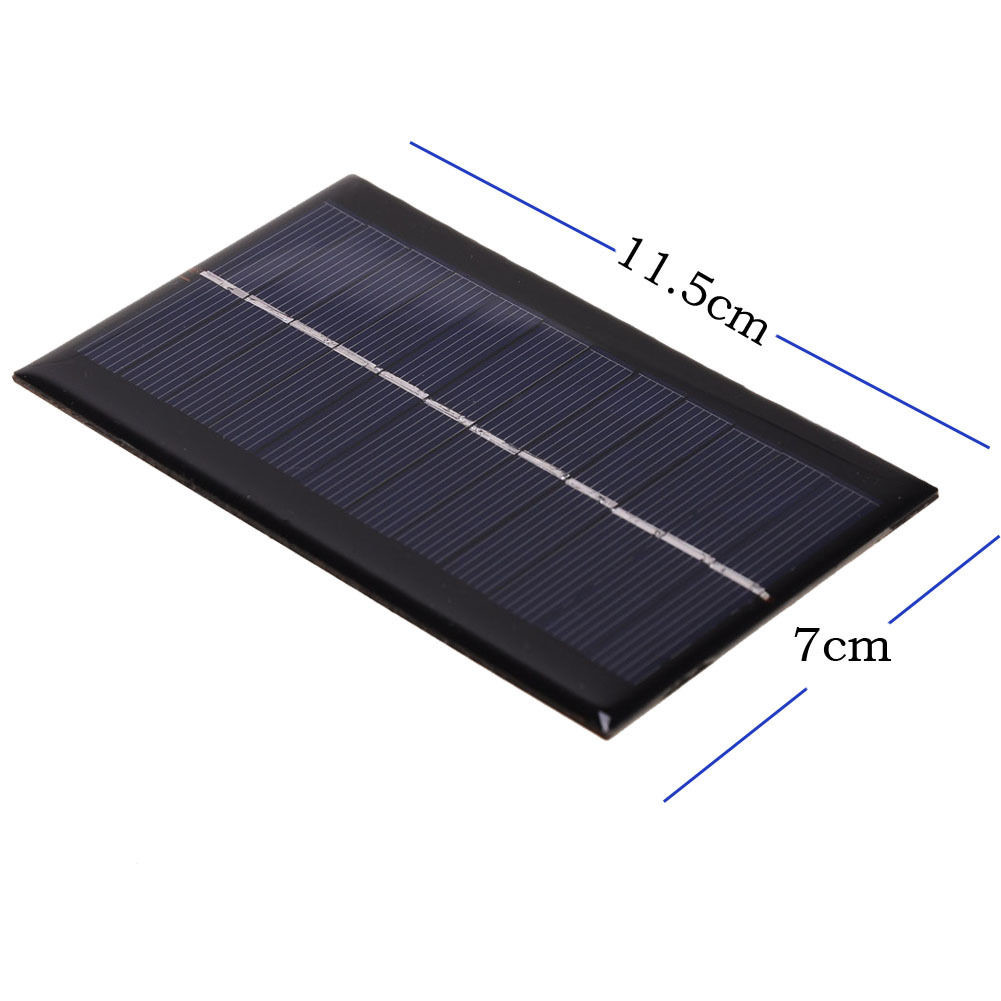

Strongly Waterproof Mini Solar Panels 5W , Custom Size Solar Cells For Led Light

Strongly Waterproof Mini Solar Panels 5W , Custom Size Solar Cells For Led Light

    • Strongly Waterproof Mini Solar Panels 5W , Custom Size Solar Cells For Led Light
    • Strongly Waterproof Mini Solar Panels 5W , Custom Size Solar Cells For Led Light
    • Strongly Waterproof Mini Solar Panels 5W , Custom Size Solar Cells For Led Light
  • Strongly Waterproof Mini Solar Panels 5W , Custom Size Solar Cells For Led Light

    Product Details:

    Place of Origin: China
    Brand Name: SHINE, OEM
    Certification: CE, RoHS, IEC
    Model Number: SN-P4W

    Payment & Shipping Terms:

    Minimum Order Quantity: 100
    Price: negotiation
    Packaging Details: carton
    Delivery Time: 15 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 100000pcs
    Contact Now
    Detailed Product Description
    Wattage: 0.5W To 30W Voltage: 2V, 5V, 6V, 9V, 12V, 18V
    Color: Black Material: PET Or EPOXY
    Wranty: 12 Mouth Back Sheet: PCB Or PET
    High Light:

    miniature solar panels

    ,

    small portable solar panels

    Custom Made any Sizes Small Epoxy Solar Panel 1W 2W 3W 4W 5W Mini Solar Panel/Solar Cells for Led Light

    Our company designs and produces small solar panel with different specification and size. We utilize high transparent epoxy resin to encapsulate small solar panel and employ high-intensity and anti-distorting PCB board (hard pasteboards and glass fiber boards) as baseboard. We import different famous-brand solar cells (125/156) for solar panel. Our epoxy resin solar panel is UV resistant and yellowing resistant. All of our epoxy resin solar panels are environment friendly and fulfill ROSH directives.

    Small solar panel ranges 0.1W to 2W in general, has different size and shape. It has wide applications and can be used to various electronic products and lighting products. We can design and produce small solar panel and control circuit. Control circuit avoids battery of electronic products and lighting products overcharging and over-discharging.

    Epoxy solar panel structure

    It is a traditional type small solar panel called epoxy resin encapsulated solar panel, which is sticked together by epoxy resin glue at a temperature 50~60 degree, you will see the epoxy resin coated panel have three layers,

    1. Epoxy resin AB glue

    2. Solar cells

    3. PCB Board

    Features

    1. High efficiency monocrystalline or polycrystalline solar cells.
    2. PET laminated.
    3. Suitable for both lithium battery and Ni-MH battery connectivity
    4. Ideal for mobile phone, mobile phone chargers, small power consumption electronics and electronic gifts.
    5. High conversion rate, high efficiency output
    6. Excellent weak light effect
    7. Suitable for charging cellphone and small DC batteries
    8. Build your DIY powered models, solar display , solar light and solar toys, etc





    Our advantage:

    high efficiency polycrystalline cells

    enviromental friendly AB glue

    high quality epoxy resin

    smooth surface and amazing apprearance

    light weight

    widely used for educational kits,experiment kits,science kits,toys kits,small power supply etc.



    Products Features:

    Model No.: SN-EP5W
    Cell Type: mono-crystalline silicon
    Cell Efficiency: about 18%
    Power Tolerance: +/-3%
    Max Output Power (Wmp): 5W
    Optimum Operating Voltage (Vmp): 12V
    Optimum Operating Current (Imp): 416mah
    Open Circuit Voltage (Voc): 14.4V
    Short Circuit Current (Isc): 457mah
    Size: 200*170*2.2mm
    Material: PET+EVA+Mono Cell+EVA+PCB
    Connector 2.1mm male DC barrel connector
    Testing Conditions (STC):

    Irradiance1000W/m2, Temperature 25°C, AM 1.5

    Note: The shape,size and voltage of solar panels can be customized by customers' requirements.
