| Place of Origin: | China |
| Brand Name: | SHINE OR OEM |
| Certification: | CE, RoHS, SGS, LVD |
| Model Number: | SN-K100W |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negiotation |
| Packaging Details: | 10 pcs per carton and then on pallet. |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 10000 pcs per month |
| Front Material: | High Efficiency SunPower Cells | Dimension Open: | 650*1010*30MM |
|---|---|---|---|
| Weight: | 3.9KGS | Color: | White Or Black |
| Junction Box: | IP67 With Diodes | Connectors: | 90cm With MC4 Connectors |
| Voltage: | 18V Vmp | Maximum Power Current (Imp): | 5.56A |
| High Light: | bendable solar panels,curved solar panels |
||

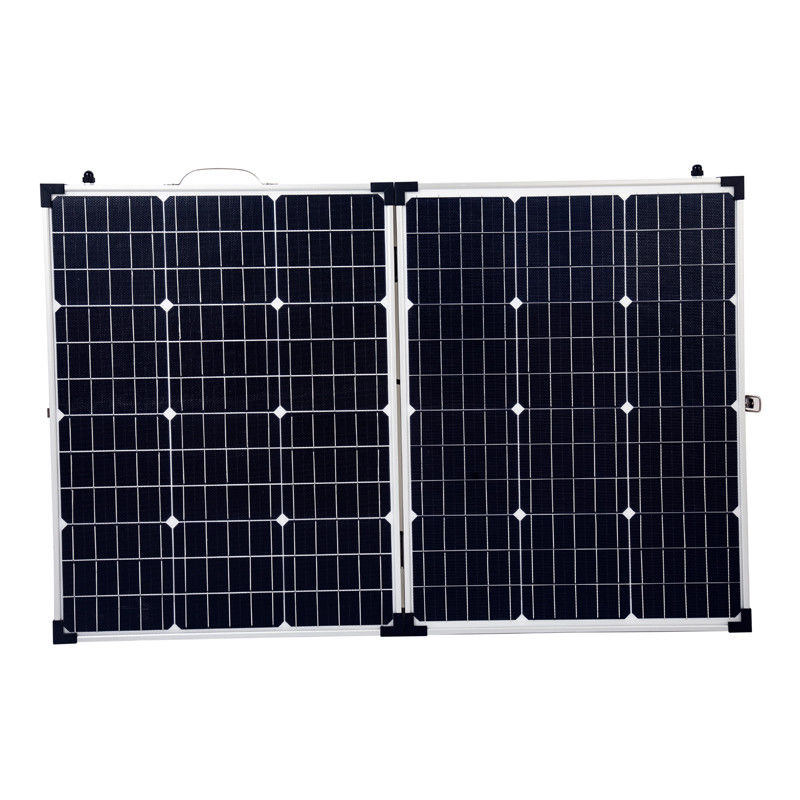

Flexible solar panel 18v 100w portable solar panel foldable
> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID
That multifunctional portable solar charger, High efficiency, we have 2x40w and 3x40W two items, provide free power for charging 12V batteries, for example in vehicles and boats, motorhome , caravan, camping, narrow boat, yacht etc, or any other systems with a 12V battery or battery bank
| Cell brand | monocrystalline solar cells |
| Power tolerance | ±5% |
| Peak power(WP) | 100W |
| Voltage at Pmax(Vmp) | 18V |
| Current at Pmax(lmp) | 5.56A |
| Open circuit voltaage(Voc) | 21.24V |
| Short circuit current(lsc) | 5.96A |
| Operating Temperature | -25℃ +65℃ |
| Relative Humidity | 0~100% |
| Dimension Open | 650*1010*30MM |
| Dimension when folded | 650*500*65MM |
| Net Weight(kg) | 3.9kg |
Other model and wattage:
| Sunpower Semi-Flexible Solar Panel | |||||||
| MODEL | PM/W | VOC/V | ISC/A | VMP/V | IMP/A | N/W(kg) | DIMENSION (mm) |
| SN-H18W | 18.00 | 23.70 | 1.03 | 19.40 | 0.93 | 0.32 | 434*277*3 |
| SN-H20W | 20.00 | 25.00 | 1.05 | 20.80 | 0.96 | 0.36 | 455*277*3 |
| SN-H25W | 25.00 | 21.60 | 1.50 | 18.00 | 1.40 | 0.45 | 560*277*3 |
| SN-H30W | 30.00 | 21.20 | 1.83 | 17.60 | 1.70 | 0.54 | 535*378*3 |
| SN-H50W | 50.00 | 21.20 | 3.05 | 17.60 | 2.84 | 0.90 | 545*535*3 |
| SN-H60W | 60.00 | 21.00 | 3.84 | 17.50 | 3.43 | 1.08 | 725*535*3 |
| SN-H90W | 90.00 | 18.50 | 6.30 | 15.20 | 5.90 | 1.60 | 920*540*3 |
| SN-H100W | 100.00 | 21.60 | 5.97 | 17.80 | 5.62 | 1.80 | 1050*540*3 |
| SN-H110W | 110.00 | 23.70 | 5.91 | 19.80 | 5.56 | 1.98 | 1175*540*3 |
| SN-H120W | 120.00 | 26.40 | 5.87 | 22.00 | 5.45 | 2.16 | 1305*540*3 |
| SN-H135W | 135.00 | 29.50 | 5.82 | 24.90 | 5.45 | 2.43 | 1435*540*3 |
| SN-H150W | 150.00 | 32.00 | 5.90 | 27.40 | 5.50 | 2.70 | 1300*660*3 |
| SN-H180W | 180.00 | 40.00 | 6.00 | 33.00 | 5.45 | 3.24 | 1300*800*3 |
| SN-H200W | 200.00 | 42.00 | 6.30 | 35.00 | 5.70 | 3.60 | 1435*800*3 |
| SN-H220W | 220.00 | 48.30 | 5.90 | 39.80 | 5.45 | 3.96 | 1560*800*3 |
| SN-H250W | 250.00 | 54.00 | 6.10 | 45.00 | 5.60 | 4.50 | 1810*800*3 |
| SN-H300W | 300.00 | 66.00 | 6.50 | 55.00 | 5.45 | 5.40 |
1810*920*3 |
Pictures
Pack and Service:
1.usually packed in the cartons and pallets.
2. Individual package is acceptable.
Deliveried by air, sea,express are acceptablelly packed in the cartons and pallets.
FAQ:
1.Question:
Would this keep fully charged a 100Ah 12v battery used to power an led cricket scoreboard with 22 digits whilst in use?
Answer:
Good afternoon Jonwillie,
teorically yes, it could keep 100Ah battery fully charged.
But you must consider the sun and the consumption of your scoreboard.
In a sunny day, solar panel will supply 5 Ah by hour. It means at best you will load 30 Ah - 6 hours x 5 Ah - in your battery; it is about 36% of its charge.
If your scoreboard consume usually no more than 1/3 of battery, in a sunny day you will be able to keep battery fully charged.
2.Question:
how do you work out what amp controller you need for motorhome
Answer:
The correct controller was supplied with the panel, whole set up appears to work as it should, will also keep cab battery charged
3.Question:
Does it require additional brackets down the length of the panel. I only have 540mm width available.
Answer:
No additional brackets are required.
4.Question:
Would this keep a 12volt Campervan fridge running?
Answer:
I have a Waeco 12v fridge in my van and it runs it OK even sitting for 5 days without starting up the engine
