| Place of Origin: | China |
| Brand Name: | SHINE OR OEM |
| Certification: | CE, RoHS, SGS, LVD |
| Model Number: | SN-H35W |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negiotation |
| Packaging Details: | 10 pcs per carton and then on pallet. |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 10000 pcs per month |
| Front Material: | High Efficiency SunPower Cells | Size: | 535*378*3mm |
|---|---|---|---|
| Weight: | 0.8KGS | Color: | White Or Black |
| Junction Box: | IP67 With Diodes | Connectors: | 90cm With MC4 Connectors |
| Voltage: | 18V Vmp | Application: | Boat/RV/Vehicle/Home |
| High Light: | rv solar panel kits,rv solar battery charger |
||
Top Quality Bending Thin Film RV Flexible Solar Panel 35W 12V Camping , Tent Charging
The Semi-Flexible solar panel are made by the high efficiency solar cell, it widely apply for the outdoor sports, travel, camping, etc. The solar panel 12V can as the battery charger, 18650 battery charger, AA/AAA rechargeable charger and the USB/car charger. After connecting the controller, the solar panel can charging the cell phone, laptop, iphone, ipad, mobile phone,etc.
Feature:
30W Flexible solar panel:

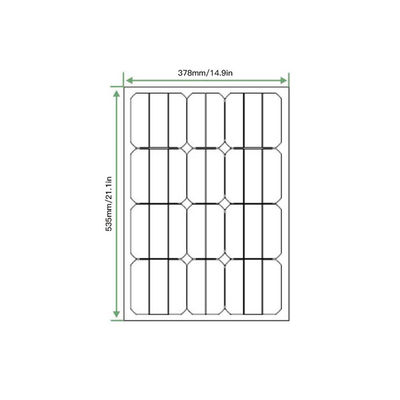

1. Size: 535*378*3MM
2. Material: SunPower Monocrystalline Silicon
3. Number of Cells: 32PCS
4. Max. Power: 30W
5. Nominal Capacity: 35W
6. Pmax(Power at Maximum under STC): 35W
7. Ipm(Current at Max Power, A): 1.98A
8. Vmp(Voltage at Max Power, V): 18.0V
9. Voc(Voltage at Open Circuit, V): 21.6V
10. Isc(Current at Short Circuit,A): 2.05A
11. STC(Standard Testing Condition): 1000W/Square Meter AM=1.5 25 C Degree
12. Max System Voltage: 700VDC
13. Connection Method: 0.9M Cable with terminals
14. Solar Cell Efficiency: 22.0%
15. Customized: Yes
Other model and wattage:
| MODEL | PM/w Maximum Power |
VOC/v Open Circuit Voltage |
ISC/A Short Circuit Current |
VMP/V Optimum Operating Voltage |
IMP/A Optimum Operating Current |
N/W(kg) | DIMENSION (mm) |
| SN-H20W | 20.0 | 23.76 | 1.10 | 19.80 | 1.01 | 0.3 | 434*277*3 |
| SN-H25W | 25.0 | 21.60 | 1.51 | 18.00 | 1.39 | 0.5 | 560*277*3 |
| SN-H35W | 35.0 | 21.60 | 2.12 | 18.00 | 1.94 | 0.6 | 535*378*3 |
| SN-H55W | 55.0 | 21.60 | 3.33 | 18.00 | 3.06 | 0.7 | 560*540*3 |
| SN-H65W | 65.0 | 24.60 | 3.46 | 20.50 | 3.17 | 0.8 | 625*540*3 |
| SN-H70W | 70.0 | 26.40 | 3.47 | 22.00 | 3.18 | 0.9 | 1050*370*3 |
| SN-H80W | 80.0 | 23.76 | 4.40 | 19.80 | 4.04 | 1.0 | 810*540*3 |
| SN-H100W | 100.0 | 19.44 | 6.73 | 16.20 | 6.17 | 1.2 | 920*540*3 |
| SN-H110W | 110.0 | 21.60 | 6.66 | 18.00 | 6.11 | 1.6 | 1050*540*3 |
| SN-H120W | 120.0 | 24.60 | 6.38 | 20.50 | 5.85 | 1.8 | 1180*540*3 |
| SN-H140W | 140.0 | 27.60 | 6.63 | 23.00 | 6.09 | 2.0 | 1305*540*3 |
| SN-H160W | 160.0 | 30.00 | 6.98 | 25.00 | 6.40 | 2.2 | 1435*540*3 |
| SN-H180W | 180.0 | 34.20 | 6.88 | 28.50 | 6.32 | 2.5 | 1320*665*3 |
| SN-H200W | 200.0 | 37.56 | 6.96 | 31.30 | 6.39 | 2.7 | 1435*665*3 |
| SN-H210W | 210.0 | 41.04 | 6.69 | 34.20 | 6.14 | 2.9 | 1300*800*3 |
| SN-H230W | 230.0 | 45.12 | 6.67 | 37.60 | 6.12 | 3.2 | 1435*800*3 |
| SN-H250W | 250.0 | 49.20 | 6.65 | 41.00 | 6.10 | 3.5 | 1560*800*3 |
| SN-H280W | 280.0 | 53.40 | 6.86 | 44.50 | 6.29 | 4.0 | 1680*800*3 |
| SN-H300W | 300.0 | 57.48 | 6.83 | 47.90 | 6.26 | 4.3 | 1810*800*3 |
| SN-H330W | 330.0 | 62.16 | 6.94 | 51.80 | 6.37 | 4.7 | 1680*920*3 |
| SN-H350W | 340.0 | 67.20 | 6.62 | 56.00 | 6.07 | 5.2 | 1810*920*3 |
