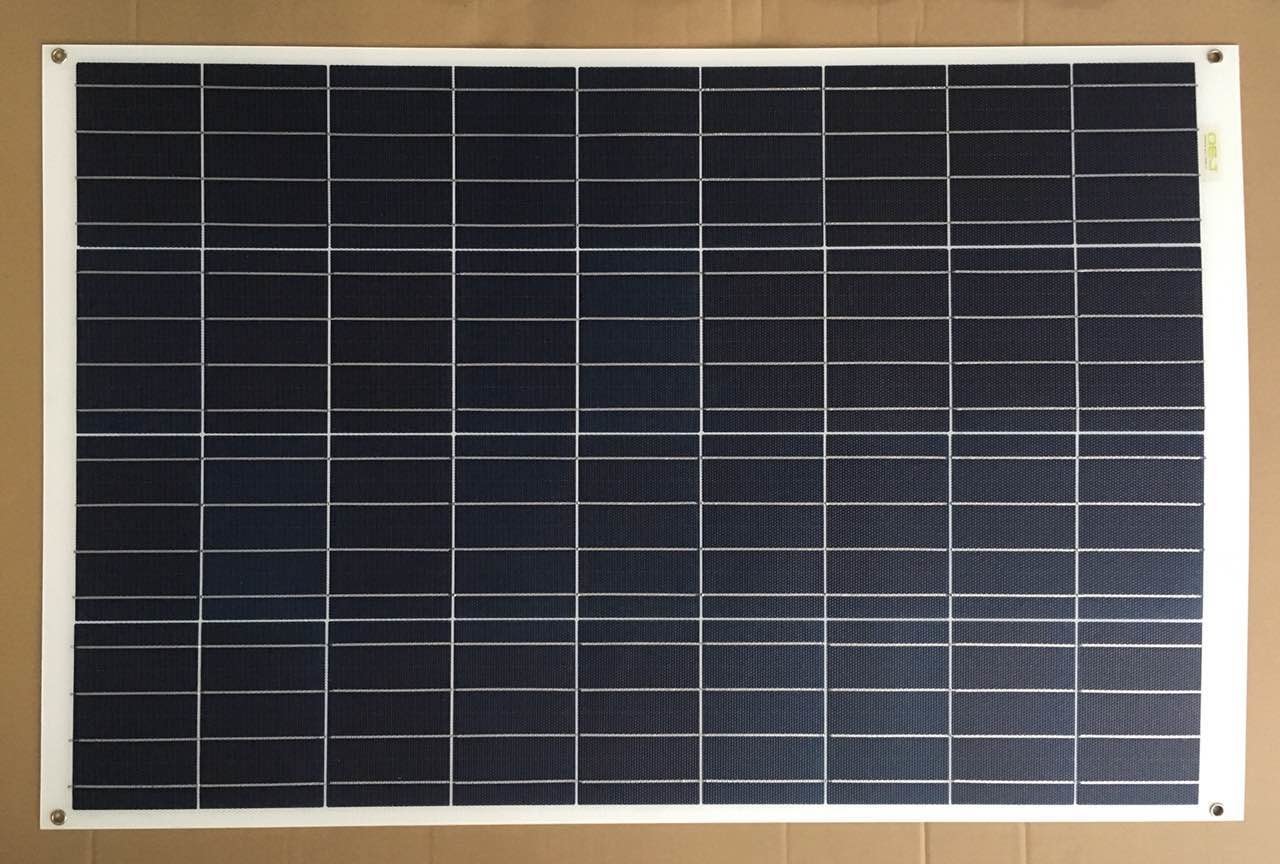

Poly RV Flexible Solar Panels 100W IP67 Junction Box With Anderson Connector

Poly RV Flexible Solar Panels 100W IP67 Junction Box With Anderson Connector

Poly RV Flexible Solar Panels 100W IP67 Junction Box With Anderson Connector

Product Details:

Place of Origin: China
Brand Name: SHINE OR OEM
Certification: CE, RoHS, SGS, LVD
Model Number: SN-H100W

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negiotation
Packaging Details: 10 pcs per carton and then on pallet.
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000 pcs per month
Contact Now
Detailed Product Description
Features: Corrosion Resistant, Flexible, Portable Size: 1050*540*3mm
Weight: 1.3KGS Color: White Or Black
Junction Box: IP67 With Diodes Connectors: 90cm With MC4 Connectors
Application: Boat/RV/Vehicle/Home Warranty: 5 Years
High Light:

golf cart solar panel kit portable

,

rv solar battery charger

Poly flexible Solar panel for RV Flexible Solar Panels with Anderson connector



100W Flexible solar panel:

Item 100W Sunpower flexible solar panel
Solar panel size : 1150*540*3mm
Product net weight : 1.5KG
Solar cell: poly solar cell
Efficiency: 15.6%
Maximum power(Pm): 100W
Voltage at max power(Vmp): 18(V)
Current at max power(Imp): 5.6A)
Short circuit current(Isc): 6.16(A)
Open circuit voltage(Voc): 66.0(V)
Number of cells and connections : 36Cell
Connector : MC4
Junction box : IP65
Operating Temperature : - 40-+85



Any size and shape flexible solar panel can be customized according to your requirement.



Other model and wattage:

MODEL PM/w VOC/v ISC/A VMP/V IMP/A C-EFF N/W(kg) DIMENSION
(mm)
SN-H18W 18.0 23.7 1.0 19.4 0.9 22.00% 0.3 434*277*3
SN-H25W 25.0 21.6 1.5 18.0 1.4 22.00% 0.6 560*277*3
SN-H30W 30.0 21.2 1.8 17.6 1.7 22.00% 0.5 535*378*3
SN-H50W 50.0 21.2 3.1 17.6 2.8 22.00% 0.7 545*535*3
SN-H60W 60.0 21.0 3.8 17.5 3.4 22.00% 0.9 725*535*3
SN-H95W 95.0 18.5 6.8 15.4 6.2 22.00% 1.2 920*540*3
SN-H110W 110.0 21.6 6.7 18.0 6.1 22.00% 1.4 1050*540*3
SN-H120W 120.0 24.0 6.6 20.0 6.0 22.00% 1.5 1175*540*3
SN-H135W 135.0 27.6 6.5 23.0 5.9 22.00% 1.8 1305*540*3
SN-H150W 150.0 30.0 6.6 25.0 6.0 22.00% 2.0 1435*540*3
SN-H170W 170.0 33.6 6.6 28.0 6.0 22.00% 2.5 1300*660*3
SN-H200W 200.0 40.8 6.4 34.0 5.9 22.00% 3.0 1300*800*3
SN-H220W 220.0 44.4 6.5 37.0 5.9 22.00% 3.5 1435*800*3
SN-H240W 240.0 49.0 6.4 41.0 5.9 22.00% 4.5 1560*800*3
SN-H285W 285.0 57.4 6.5 48.0 5.9 22.00% 5.0 1810*800*3
SN-H310W 310.0 62.4 6.6 52.0 6.0 22.00% 6.2 1680*920*3
SN-H330W 330.0 67.0 6.5 56.0 5.9 22.00% 6.5 1810*920*3
