Hotel Roof System SunPower Monocrystalline Solar Cells 100 Watt 1195 x 541 x 30 mm

Hotel Roof System SunPower Monocrystalline Solar Cells 100 Watt 1195 x 541 x 30 mm

    • Hotel Roof System SunPower Monocrystalline Solar Cells 100 Watt 1195 x 541 x 30 mm
    • Hotel Roof System SunPower Monocrystalline Solar Cells 100 Watt 1195 x 541 x 30 mm
    • Hotel Roof System SunPower Monocrystalline Solar Cells 100 Watt 1195 x 541 x 30 mm
  • Hotel Roof System SunPower Monocrystalline Solar Cells 100 Watt 1195 x 541 x 30 mm

    Product Details:

    Place of Origin: CHINA
    Brand Name: SHINE OR OEM
    Certification: CE, LVD, TUV, IEC, ROSH, SGS
    Model Number: SN-M100

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: single box or 25 pieces per pallet
    Delivery Time: 15 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 20000 pcs per month
    Contact Now
    Detailed Product Description
    Max Power: 100Watt Voltage: 18V Vmp
    Current: 5.56A Efficiency: 15.56%
    SIze: 1195*541*30mm Junction Box: MC4 Connector

    Solar panel for Sale 100Watt Sunpower Monocrystalline Solar Panel with Sunpower solar module

    Product Description
    Characteristics SN-M90 SN-M100 SN-M120 SN-M130 SN-M150 SN-M160 SN-M170
    Maximum Power(Pmax) 90Wp 100Wp 120Wp 130Wp 150Wp 160Wp 170Wp
    Optimum Operating Voltage/Vmp 18.0V 18.0V 18.0V 18.0V 18.0V 18.0V 18.2V
    Optimum Operating Current/Imp 5.00A 5.56A 6.67A 7.22A 8.33A 8.89A 9.34A
    Open Circuit Voltage /Voc 21.6V 21.6V 21.6V 21.6V 21.6V 21.6V 22.0V
    Short Circuit Current /Isc 5.2A 5.76A 6.87A 7.42A 8.53A 9.78A 9.92A
    Module Efficiency 13.92% 15.56% 15.05% 16.31% 15.10% 16.13% 17.14%
    Weight 7.2Kg 7.2Kg 9Kg 9Kg 12Kg 12Kg 12Kg
    Numbers of cells 36(4*9) 36(4*9) 36(4*9) 36(4*9) 36(4*9) 36(4*9) 36(4*9)
    Cell dimension(mm) 125*125 125*125 156*125 156*125 156*156 156*156 156*156
    Dimensions(mm) 1195*541*30 1190*670*30 1480*670*35
    Standard test condition Irradiance 1000W/m²,Module temperature 25℃, AM=1.5

    Mechanical Characteristics
    Power Tolerance ±3 %
    Maximum Series Fuse Rating 15A
    Maximum System Voltage 1000V DC
    Operating Module Temperature -40°C to +80°C
    Frame Material Clear Anodized aluminum Frame
    Thickness of glass 3.2mm tempered glass
    Frame Anodized aluminum alloy
    Laminating material EVA
    Backsheet material TPT
    Junction box Ip65



    Temperature Characteristics
    Norminal Operating Cell Temperature(NOCT) 45±2℃
    Temperature Coefficient of Pmax -0.45%/2℃
    Temperature Coefficient of Voc -0.34%/2℃
    Temperature Coefficient of Isc -0.050%/2℃

    Pictures:

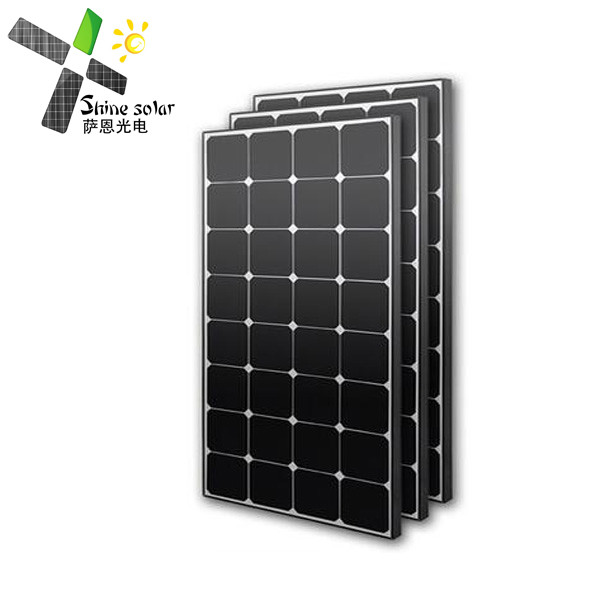

    Hotel Roof System SunPower Monocrystalline Solar Cells 100 Watt 1195 x 541 x 30 mm



    There're 7 major inspection procedures for Each piece solar panels during production :
    3 times EL testing to ensure panel without micro-break/invisible break ;
    3 times appearance inspection to ensure solar panel without defect ;
    1 time solar power testing, solar power inspection tolerance +/3watt, we ensure each solar panel has enough solar power output; besides standard inspection, each production procedure will inspect the upwards procedure;
    • So we guarantee each piece of our solar energy photovoltaic panel has perfect appearance, positive solar power performance, and without quality hidden trouble.



    1. High conversion efficiency solar cells based on innovative photovoltaic technologies.
    2. High stability 100% A grade photovoltaic cells with guaranteed +-3% solar power output tolerance,ensuring investment return.
    3. Tempered front glass withstands high wind-pressure and snow load.
    4. Easy to install.



    • Advanced technology, professional manufacture, and excellent quality solar panels /solar energy /solar power .
    • High solar enegy solar power conversion efficiency, low solar panel price
    • Anti-reflective and high viscous EVA
    • High light transmission Anti-reflective glass
    • 10-12 years solar power warranty, 25 years limited solar power warranty.
    • Strong productive ability and quick delivery .



    Efficiency
    1. Low voltage-temperature coefficient allows higher solar power output at high-temperature condition.
    2. High efficient, high reliable photovoltaic solar cells ensure our product output stability.
    Best Quality Materials Making our High quality solar panels/solar energy/best solar /solar power system :
    1. Solar cells------ Germany manufactured Bosch solar cell, efficiency is about 18%
    2. Front glass------ high transmission, low iron, tempered glass.
    3. EVA-----excellent anti-aging EVA
    4. TPT------TPT hot seal made of flame resistance, imported.
    5. Aluminum Frame----- Unique aluminium frame design with high mechanical strength for installation. .
    6. Junction box----- Ip65 rated, high quality, with diode protection .
