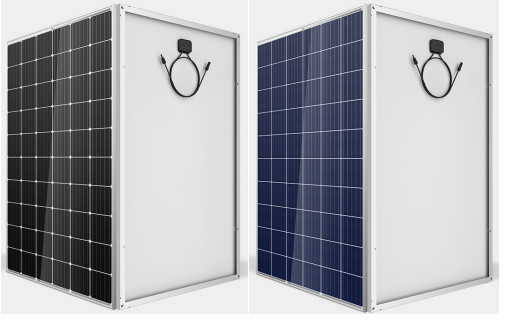

High Performance Monocrystalline Solar Panel 330W 36V For Power Station

High Performance Monocrystalline Solar Panel 330W 36V For Power Station

High Performance Monocrystalline Solar Panel 330W 36V For Power Station

Product Details:

Place of Origin: CHINA
Brand Name: SHINE OR OEM
Certification: CE, LVD, TUV, IEC, ROSH, SGS
Model Number: SN-M330

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: single box or 25 pieces per pallet
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000 pcs per month
Contact Now
Detailed Product Description
Max Power: 330Watt Voltage: 36V Vmp
Current: 9.16A Efficiency: 17.09%
SIze: 1950x990x40mm Junction Box: IP65
High Light:

monocrystalline solar module

,

monocrystalline pv panels

High performance 300w 36V Monocrystalline Solar Panel for power station



GLASS

> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years(30 years optional)

FRAME

> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serra-clip design tensile strength
> Seal-lip designglue injection



SOLAR CELL

> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID

JUNCTION BOX

> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP65 Protection level
> Heat dissipation
> Long service life


power and shape
▶ 24 hours online
▶ Delivery on time, 15-20 days lead timefor glass solar panels,
▶ Can provide specialized guidance to customers
▶As long as send an order to our company ,you will always be our VIP customer


Specification of this monocrystalline solar panel

100Watt Monocrystalline Solar Panel
Mechanical Characteristics
Characteristics
SN-M330
Power Tolerance
±3 %
Maximum Power(Pmax)
330Wp
Maximum Series Fuse Rating
15A
Optimum Operating Voltage/Vmp
36.0V
Maximum System Voltage
1000V DC
Optimum Operating Current/Imp
9.16A
Operating Module Temperature
-40°C to +80°C
Open Circuit Voltage /Voc
43.2V
Frame Material
Clear Anodized aluminum Frame
Short Circuit Current /Isc
10.07A
Thickness of glass
3.2mm tempered glass
Module Efficiency
17.09%
Frame
Anodized aluminum alloy
Weight
22Kg
Laminating material
EVA
Numbers of cells
72(6*12)
Backsheet material
TPT
Cell dimension
156*156mm
Junction box
Ip65
Dimensions(mm)
1950*990*40mm


Standard test condition
Irradiance 1000W/m²,Module temperature 25℃, AM=1.5
