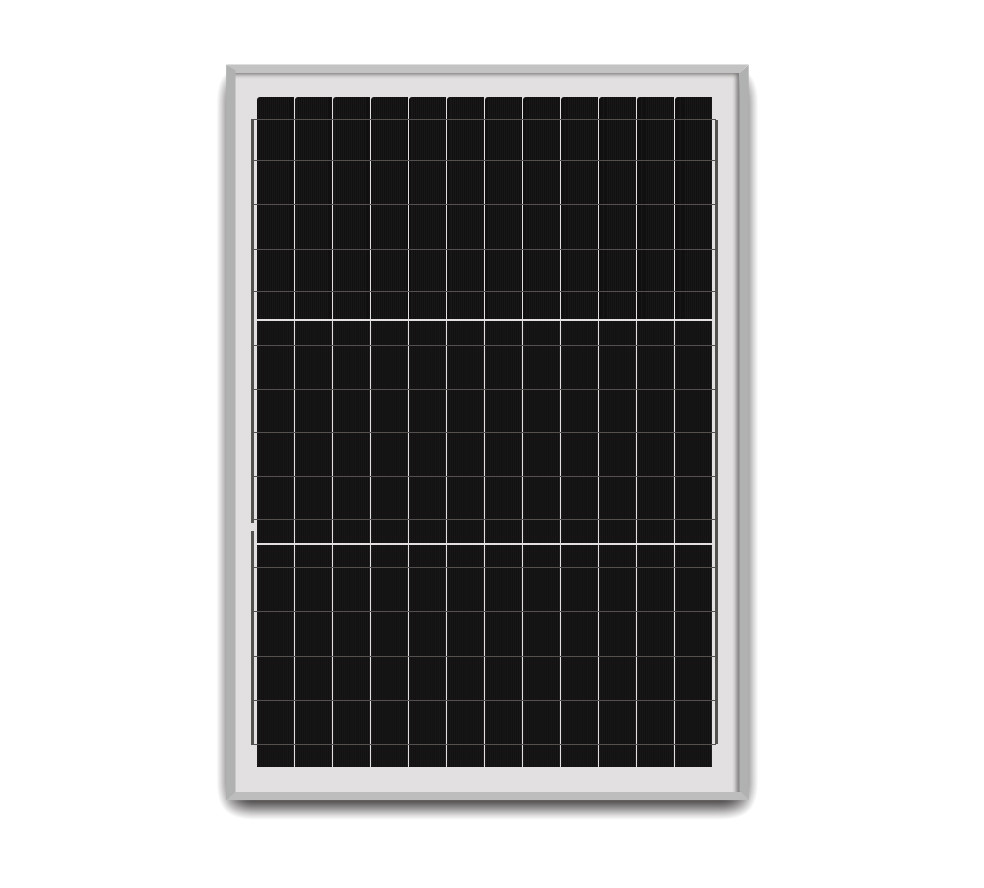

Photovoltaic Polycrystalline Silicon Solar Cells 12 Volt 50 Watt For Street Light

Photovoltaic Polycrystalline Silicon Solar Cells 12 Volt 50 Watt For Street Light

    • Photovoltaic Polycrystalline Silicon Solar Cells 12 Volt 50 Watt For Street Light
    • Photovoltaic Polycrystalline Silicon Solar Cells 12 Volt 50 Watt For Street Light
    • Photovoltaic Polycrystalline Silicon Solar Cells 12 Volt 50 Watt For Street Light
    • Photovoltaic Polycrystalline Silicon Solar Cells 12 Volt 50 Watt For Street Light
  • Photovoltaic Polycrystalline Silicon Solar Cells 12 Volt 50 Watt For Street Light

    Product Details:

    Place of Origin: China
    Brand Name: SHINE or OEM
    Certification: CE,RoHS, TUV, IEC, SGS, ISO
    Model Number: SN-P50W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: negotiable
    Packaging Details: single box or 25 pcs per pallet
    Delivery Time: 15 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 15000 pcs per month
    Contact Now
    Detailed Product Description
    Cells: 36pcs Voltage: 18V
    Junction Box: IP65 Waterproof With Diodes Cable: 90cm UV Resistance
    Color: Sliver Or Black Warranty: 5Year Manufacturing Warranty 12 Year 90% 25Year 80%

    12v 50w solar panel Photovoltaic Polycrystaline Solar Panel for street light





    Our advantage

    1, All of our solar cells pass a rigorous test and selection, to ensure all are high efficient Grade A solar cells.

    2, Fully automated production processes, and each production processes with strict monitoring to make sure the solar panels in high quality.

    3, Each solar panel will be tested one by one, and we will provide the test reports to you before shipping.

    4, Delivery on time, 15-20 days lead time for glass solar panels, and flexible solar panels always have in stock.

    5, 25 years warranty

    6, We passed the CE, ROHS, ISO9001, TUV, LVD and other certification.



    Our Services

    1, All of our solar panels can be customized size, voltage, power and shape, and ensure high power and performance.

    2, Our sales team 24 hours online, can reply your mail in time.

    3, Affordable, delivery on time, 15-20 days lead time for glass solar panels, and flexible solar panels always have in stock.

    4, Know well about solar energy industry, can provide specialized guidance to customers, such as the controller, inverter selection, the installation solution and so on.

    5, As long as send an order to our company , you will always be our VIP customer,  we will actively in updating and adjusting the product price regularly.





    Product Description

    5-80Watt Polycrystalline Solar Panel
    Characteristics SN-P030 SN-P040 SN-P050 SN-P060 SN-P080
    Maximum Power(Pmax) 30Wp 40Wp 50Wp 60Wp 80Wp
    Optimum Operating Voltage/Vmp 18.0V 18.0V 18.0V 18.0V 18.0V
    Optimum Operating Current/Imp 1.67A 2.22A 2.78A 3.33A 4.44A
    Open Circuit Voltage /Voc 21.6V 21.6V 21.6V 21.6V 21.6V
    Short Circuit Current /Isc 1.87A 2.42A 2.98A 3.52A 4.64A
    Module Efficiency 13.70% 14.80% 14.42% 14.21% 15.61%
    Weight 2.8Kg 3.2Kg 4.0Kg 5.2Kg 6Kg
    Numbers of cells 36(2*18) 36(3*12) 36(3*12) 36(4*9) 36(4*9)
    Cell dimension(mm) 156*31.2 156*39 156*52 156*62.4 156*78
    Dimensions(mm) 635*345*25 530*510*25 680*510*30 670*630*30 765*670*30
    Standard test condition



    Mechanical Characteristics
    Power Tolerance ±3 %
    Maximum Series Fuse Rating 15A
    Maximum System Voltage 1000V DC
    Operating Module Temperature -40°C to +80°C
    Frame Material Clear Anodized aluminum Frame
    Thickness of glass 3.2mm tempered glass
    Frame Anodized aluminum alloy
    Laminating material EVA
    Backsheet material TPT
    Junction box Ip65



    Mechanical Characteristics
    Power Tolerance ±3 %
    Maximum Series Fuse Rating 15A
    Maximum System Voltage 1000V DC
    Operating Module Temperature -40°C to +80°C
    Frame Material Clear Anodized aluminum Frame
    Thickness of glass 3.2mm tempered glass
    Frame Anodized aluminum alloy
    Laminating material EVA
    Backsheet material TPT
    Junction box Ip65



    Temperature Characteristics
    Norminal Operating Cell Temperature(NOCT) 45±2℃
    Temperature Coefficient of Pmax -0.45%/2℃
    Temperature Coefficient of Voc -0.34%/2℃
    Temperature Coefficient of Isc -0.050%/2℃
