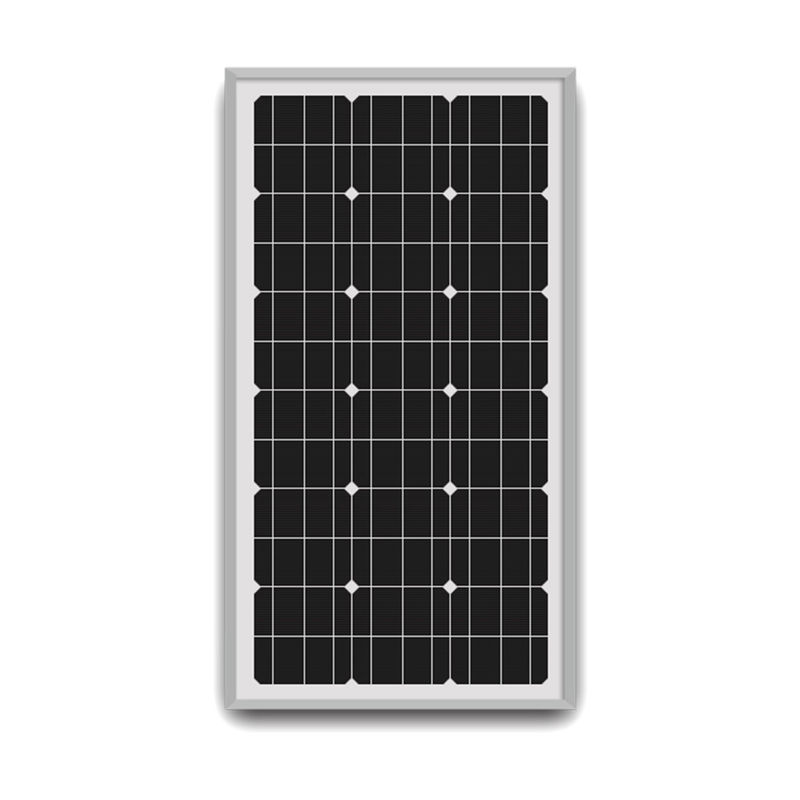

White Frame Monocrystalline Solar Panel , 12V 80W Solar Panels For RV Roof

White Frame Monocrystalline Solar Panel , 12V 80W Solar Panels For RV Roof

    • White Frame Monocrystalline Solar Panel , 12V 80W Solar Panels For RV Roof
    • White Frame Monocrystalline Solar Panel , 12V 80W Solar Panels For RV Roof
    • White Frame Monocrystalline Solar Panel , 12V 80W Solar Panels For RV Roof
    • White Frame Monocrystalline Solar Panel , 12V 80W Solar Panels For RV Roof
  • White Frame Monocrystalline Solar Panel , 12V 80W Solar Panels For RV Roof

    Product Details:

    Place of Origin: CHINA
    Brand Name: SHINE OR OEM
    Certification: CE, LVD, TUV, IEC, ROSH, SGS
    Model Number: SN-M100

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: single box or 25 pieces per pallet
    Delivery Time: 15 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 20000 pcs per month
    Contact Now
    Detailed Product Description
    Max Power: 80Watt Voltage: 18V Vmp
    Current: 4.44A Efficiency: 15.61%
    SIze: 765*670*30mm Junction Box: MC4 Connector
    High Light:

    monocrystalline solar module

    ,

    monocrystalline pv panels

    High efficience White frame Monocrystalline Solar Panel 12v 80Watt 80w mono solar panel

    Product Description
    Characteristics SN-M005 SN-M010 SN-M020 SN-M030 SN-M040 SN-M050 SN-M060 SN-M080
    Maximum Power(Pmax) 5Wp 10Wp 20Wp 30Wp 40Wp 50Wp 60Wp 80Wp
    Optimum Operating Voltage/Vmp 18.0V 18.0V 18.0V 18.0V 18.0V 18.0V 18.0V 18.0V
    Optimum Operating Current/Imp 0.27A 0.56A 1.11A 1.67A 2.22A 2.78A 3.33A 4.44A
    Open Circuit Voltage /Voc 21.6V 21.6V 21.6V 21.6V 21.6V 21.6V 21.6V 21.6V
    Short Circuit Current /Isc 0.3A 0.66A 1.21A 1.87A 2.42A 2.98A 3.52A 4.64A
    Module Efficiency 10.32% 11.37% 12.33% 13.70% 14.80% 14.42% 14.21% 15.61%
    Weight 1Kg 1.7Kg 2.3Kg 2.8Kg 3.2Kg 4.0Kg 5.2Kg 6Kg
    Numbers of cells 36(2*18) 36(2*18) 36(2*18) 36(2*18) 36(3*12) 36(3*12) 36(4*9) 36(4*9)
    Cell dimension(mm) 78*10.4 156*10.4 156*22.3 156*31.2 156*39 156*52 156*62.4 156*78
    Dimensions(mm) 255*190*18 345*255*18 470*345*25 635*345*25 530*510*25 680*510*30 670*630*30 765*670*30
    Standard test condition Irradiance 1000W/m²,Module temperature 25℃, AM=1.5

    Mechanical Characteristics
    Power Tolerance ±3 %
    Maximum Series Fuse Rating 15A
    Maximum System Voltage 1000V DC
    Operating Module Temperature -40°C to +80°C
    Frame Material Clear Anodized aluminum Frame
    Thickness of glass 3.2mm tempered glass
    Frame Anodized aluminum alloy
    Laminating material EVA
    Backsheet material TPT
    Junction box Ip65



    Temperature Characteristics
    Norminal Operating Cell Temperature(NOCT) 45±2℃
    Temperature Coefficient of Pmax -0.45%/2℃
    Temperature Coefficient of Voc -0.34%/2℃
    Temperature Coefficient of Isc -0.050%/2℃

    White Frame Monocrystalline Solar Panel , 12V 80W Solar Panels For RV RoofWhite Frame Monocrystalline Solar Panel , 12V 80W Solar Panels For RV RoofWhite Frame Monocrystalline Solar Panel , 12V 80W Solar Panels For RV Roof

    Our advantage

    1, All of our solar cells pass a rigorous test and selection, to ensure all are high efficient Grade A solar cells.

    2, Fully automated production processes, and each production processes with strict monitoring to make sure the solar panels in high quality.

    3, Each solar panel will be tested one by one, and we will provide the test reports to you before shipping.

    4, Delivery on time, 15-20 days lead time for glass solar panels, and flexible solar panels always have in stock.

    5, 25 years warranty

    6, We passed the CE, ROHS, ISO9001, TUV, LVD and other certification.


    Our Services

    1, All of our solar panels can be customized size, voltage, power and shape, and ensure high power and performance.

    2, Our sales team 24 hours online, can reply your mail in time.

    3, Affordable, delivery on time, 15-20 days lead time for glass solar panels, and flexible solar panels always have in stock.

    4, Know well about solar energy industry, can provide specialized guidance to customers, such as the controller, inverter selection, the installation solution and so on.

    5, As long as send an order to our company , you will always be our VIP customer, we will actively in updating and adjusting the product price regularly.


    SHENZHEN SHINE SOLAR CO.,LTD have a qualified team experienced at R&D, production, quality control and management with competitive prices for all products and services. All products have certificates of TUV, IEC, CE, CEC and so on.

    We mainly exported to USA, Canada, Australia, South American etc, have been cooperate with Gopower ( canada), Zamp solar ( USA), Wattuneed(Belgium) etc famous companies.
